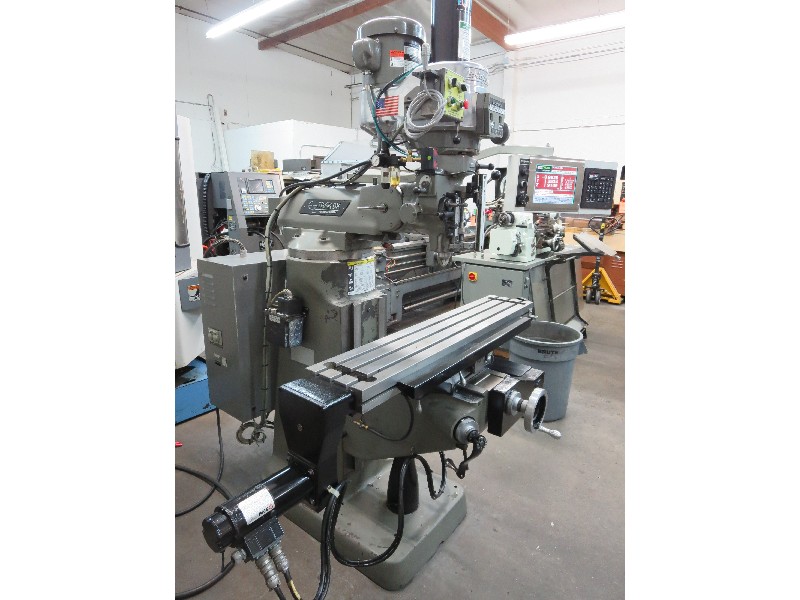

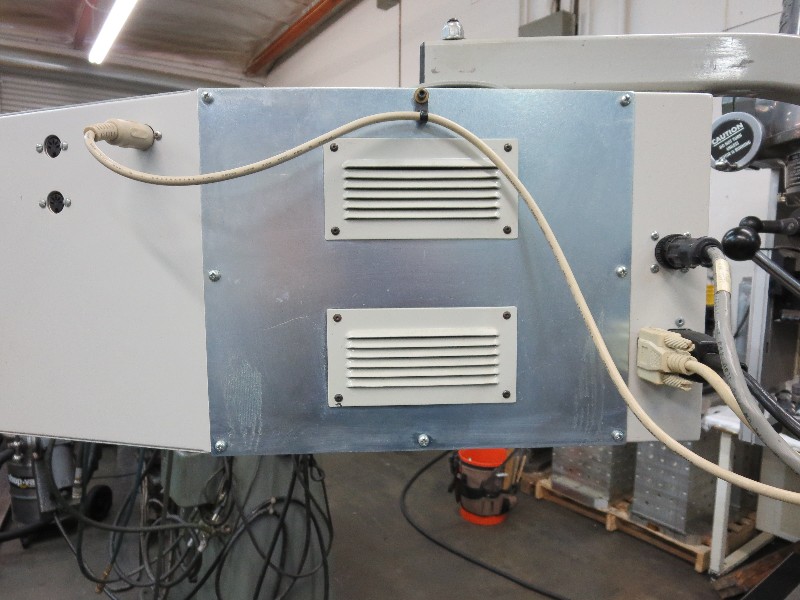

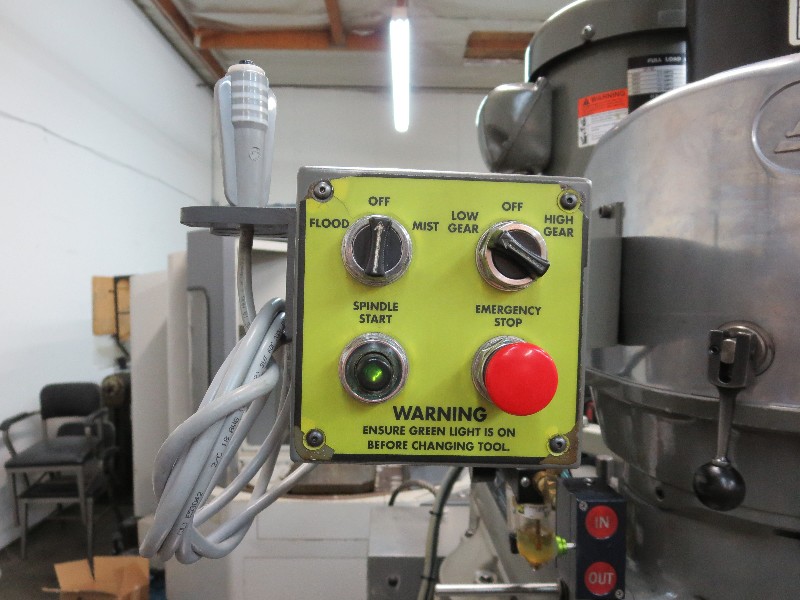

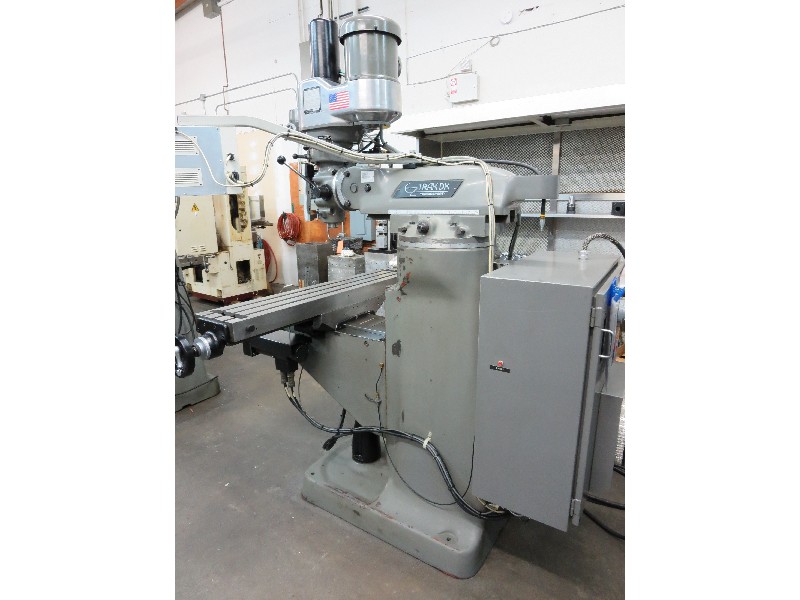

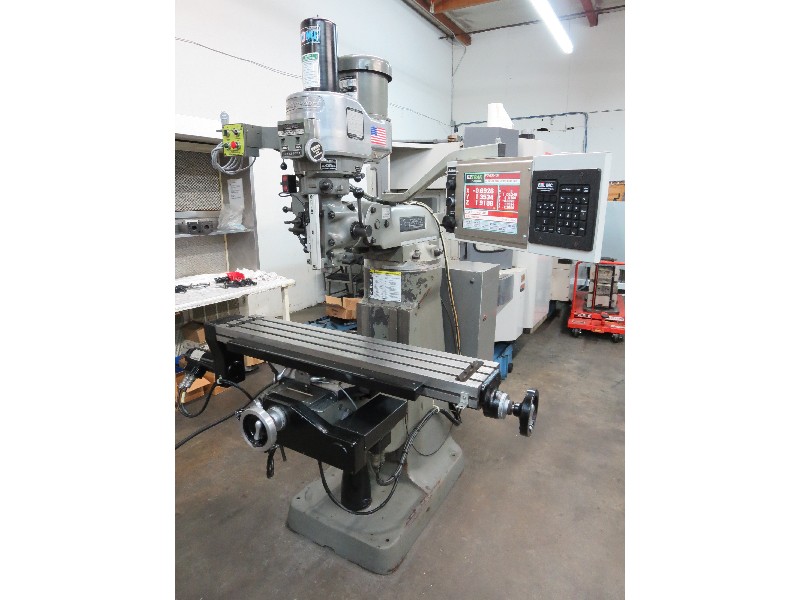

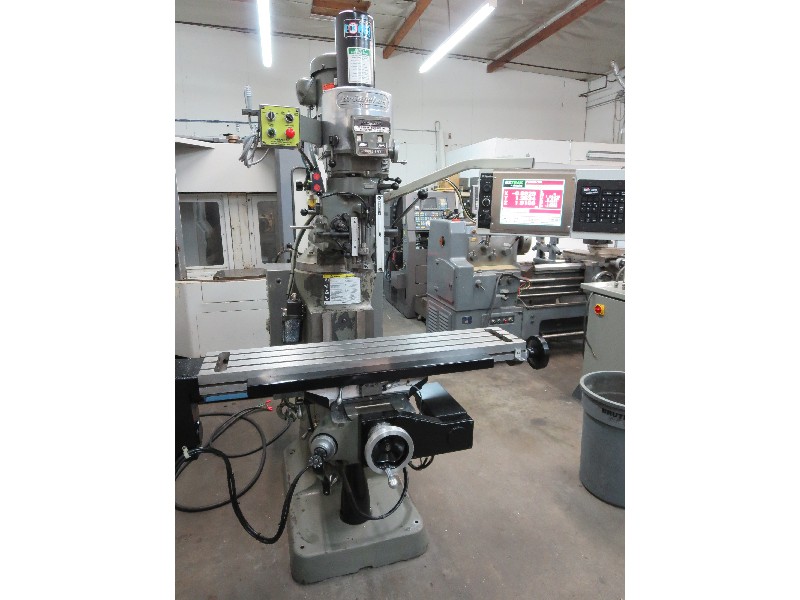

| Specification | Description |
|---|---|

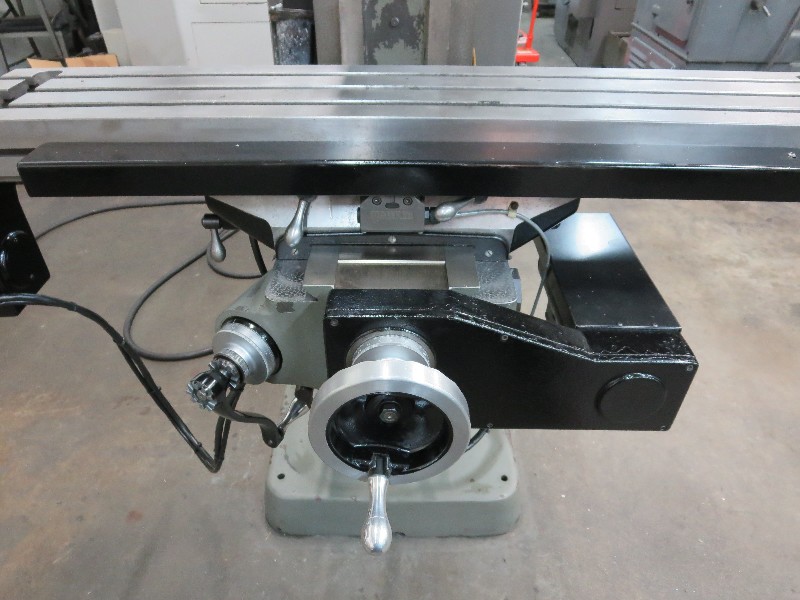

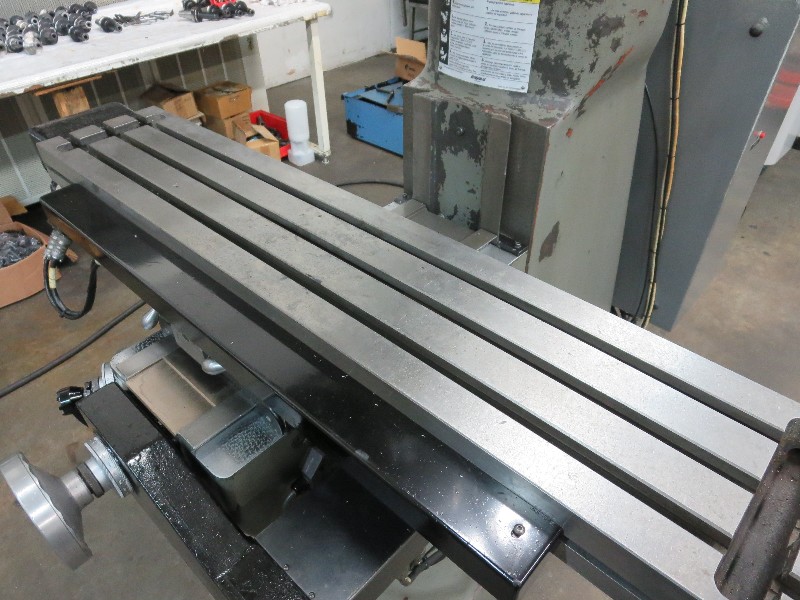

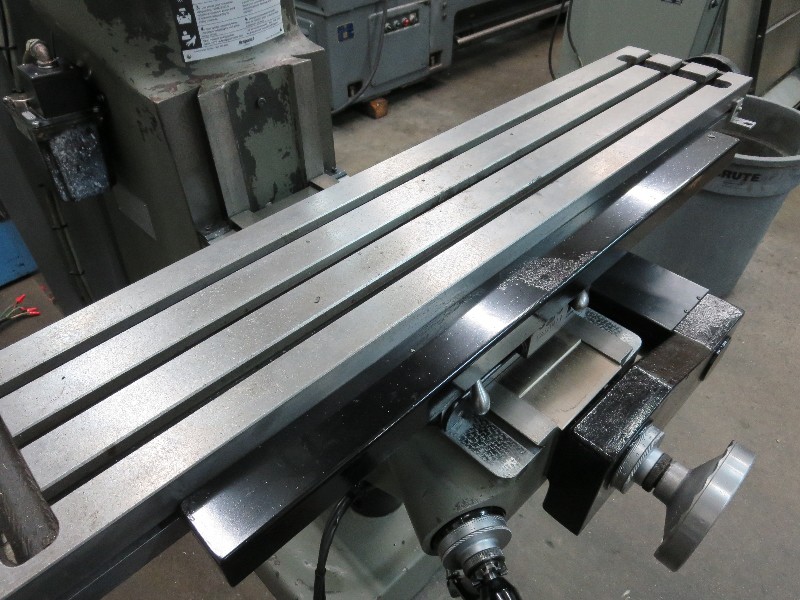

| TABLE WORKING SURFACE | 9" x 48" |
| NUMBER OF T-SLOTS | 3 |
| LONGITUDINAL TABLE RANGE (X) | 30" |
| CROSS SADDLE RANGE (Y) | 12" |

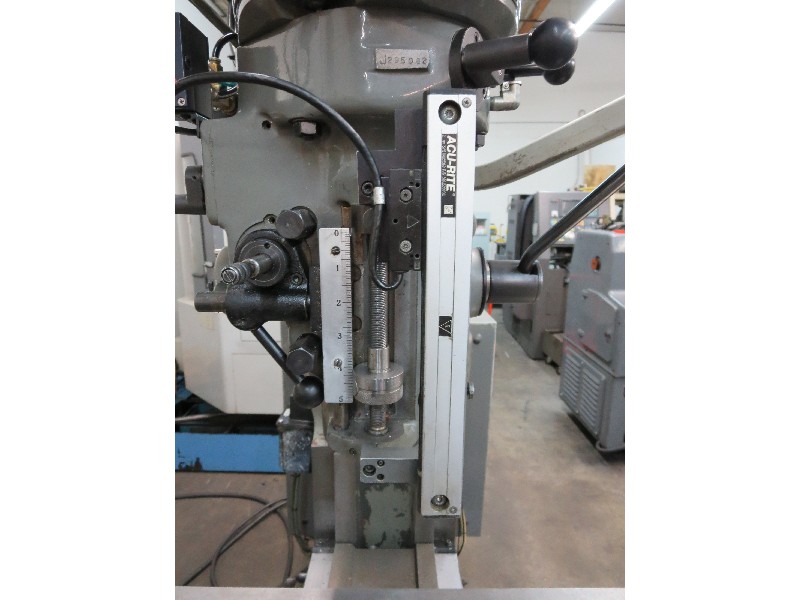

| VERTICAL QUILL RANGE (Z) | 5" |

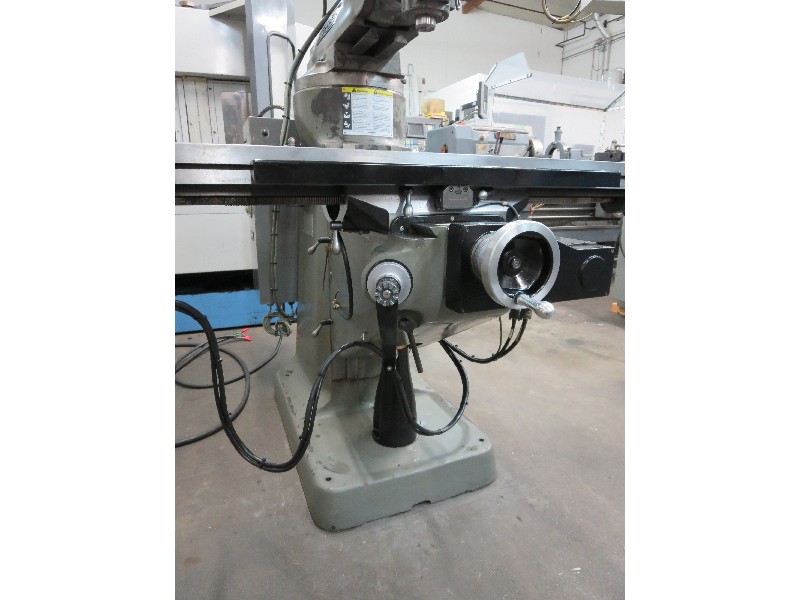

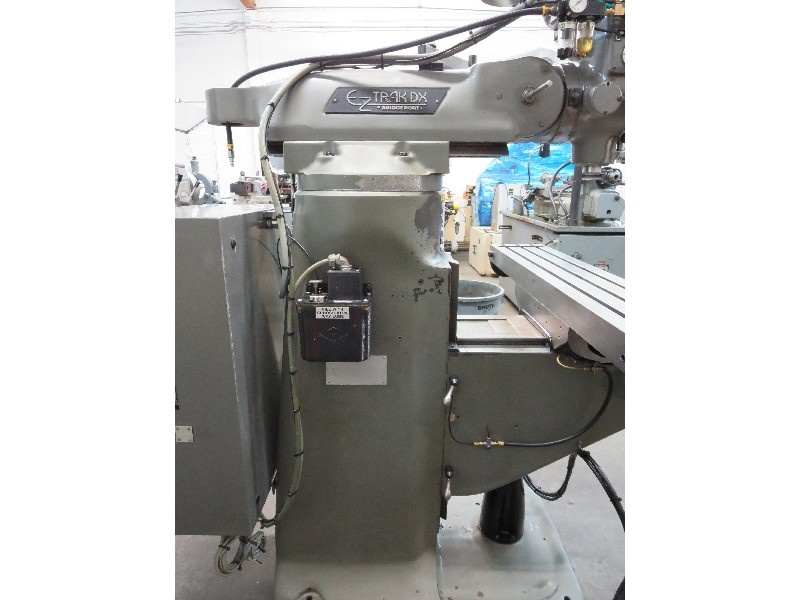

| KNEE | 15" |
| MAX/MIN DIST SPINDLE NOSE TO TABLE | 18.25" x 2.5" |
| MAX/MIN DIST CENTERLINE SPINDLE TO FACE OF COLUMN | 18.75" x 6.75" |
| MAX UNIFORM TABLE LOAD | 300 LBS. |
| RAM TRAVEL | 12" |
| HEAD TILT, LEFT AND RIGHT | 90 DEGREES |
| HEAD TILT FRONT TO REAR, EACH WAY | 45 DEGREES |
| POWER QUILL FEEDS (3) | .0015, .003, .006 IPR |

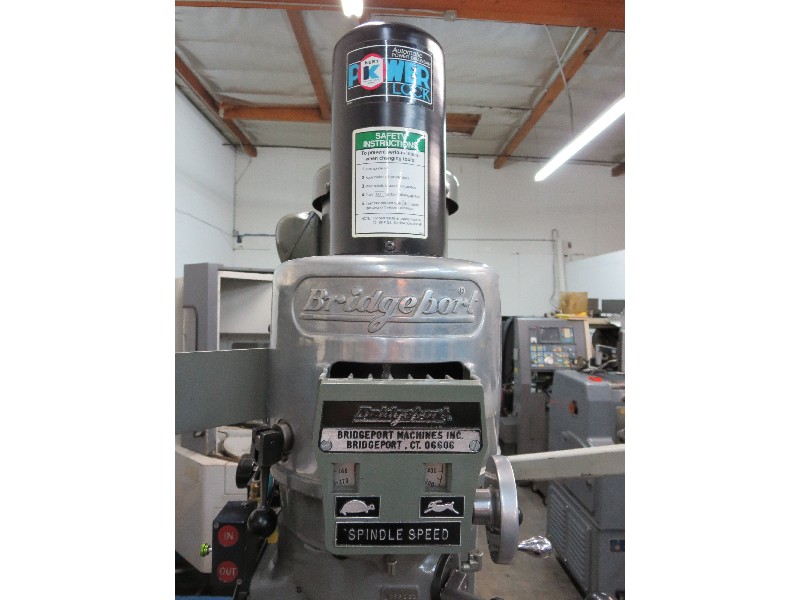

| INF VARIABLE SPINDLE SPEED RANGE: LOW | 60-500 RPM |
| INF VARIABLE SPINDLE SPEED RANGE: HIGH | 500-4,200 RPM |
| SPINDLE TAPER | R8 |

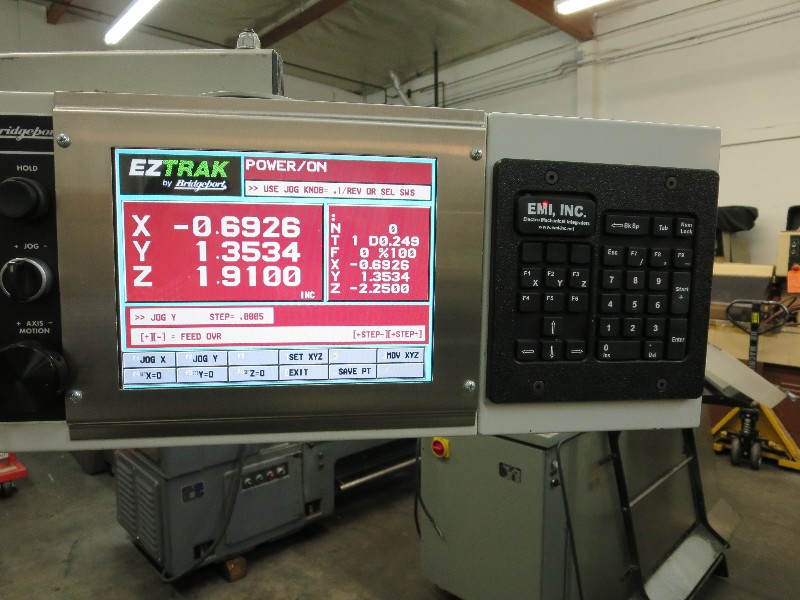

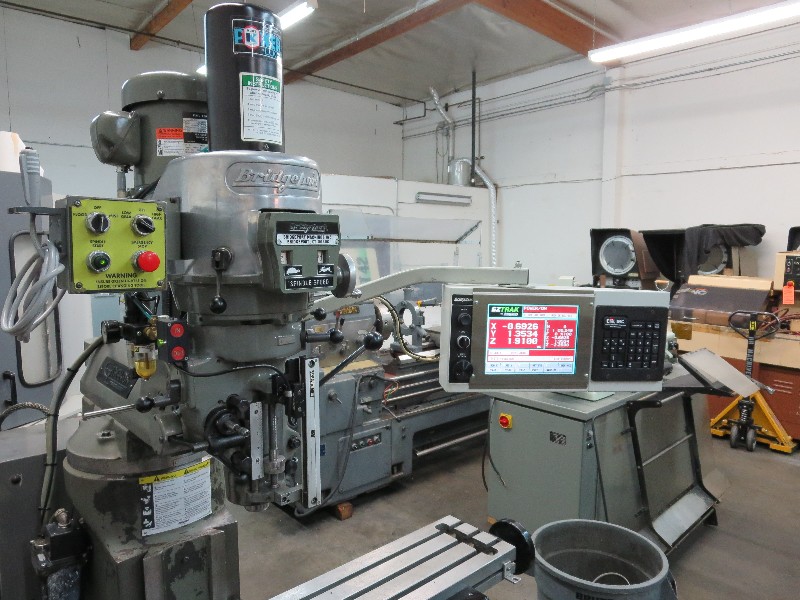

| X & Y AXES MANUAL & AUTOMATIC POSITIONING RATE | 100 IPM |
| X & Y AXES FEEDRATE RANGE, INF VAR | 0.1 - 100 IPM |
| MIN FEEDRATE INCREMENT | 0.00001" |
| APPROXIMATE WEIGHT | 2,500 LBS. |
