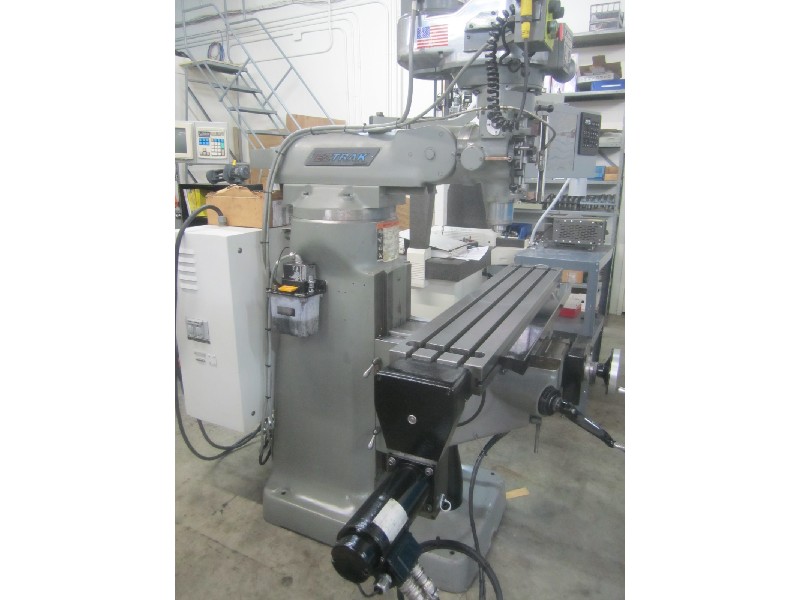

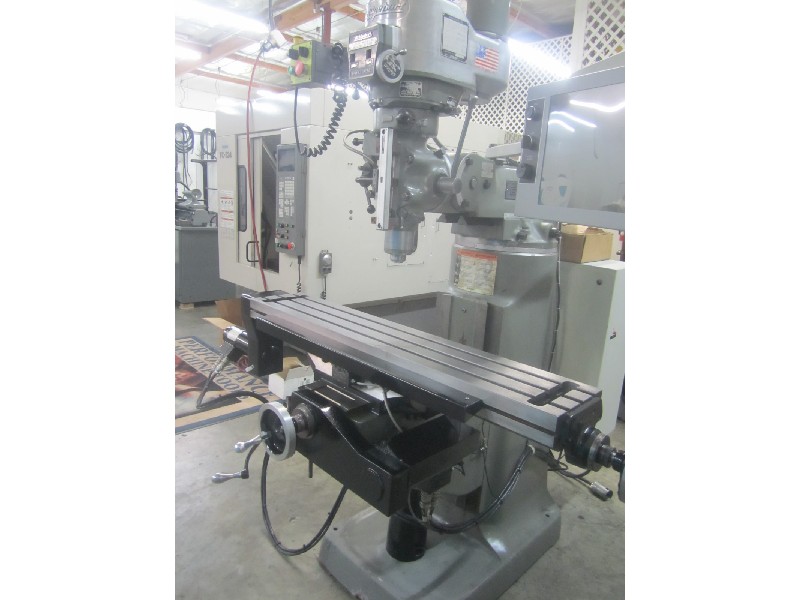

BRIDGEPORT 2 AXIS EZ TRAK CNC MILL WITH NEW 15" COLOR DISPLAY & KEYPAD

Stock Number: 1169

BRIDGEPORT EZ TRAK

Age: 1998

Condition: EXCELLENT

Click to view larger photo

Specification	Description

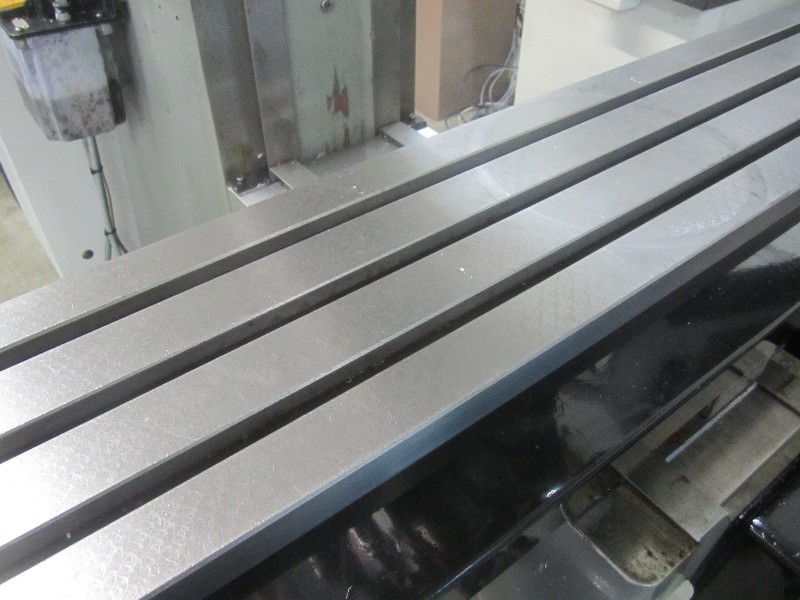

TABLE WORKING SURFACE	9" x 48"
NUMBER OF T SLOTS	3
LONGITUDINAL TABLE RANGE	30"
CROSS SADDLE RANGE (Y)	12"
VERTICAL, QUILL RANGE (Z)	5"
KNEE	15"
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE	18 1/4" x 2 1/2"
MAXIMUM DIST CENTERLINE SPINDLE TO FACE OF COLUMN	18 3/4" x 6 3/4"
MAX UNIFORM TABLE LOAD	300 LBS
RAM TRAVEL	12"
HEAD TILT, LEFT AND RIGHT	90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY	45 DEGREES
POWER QUILL FEEDS (3)	.0015, .003, .006 IPR
INF VARIABLE SPINDLE SPEED RANGE: LOW	60-500 RPM
INF VARIABLE SPINDLE SPEED RANGE: HIGH	500-4,200 RPM
SPINDLE TAPER	R8
X AND Y AXES MANUAL AND AUTOMATIC POSITIONING RANGE	100 IPM
X AND Y AXES FEEDRATE RANGE INF VAR	0.1-100 IPM
MINI FEEDRATE INCREMENT	0.0001"
APPROXIMATE WEIGHT	2,500 LBS.

Equipped With:
BRIDGEPORT EZ TRAK 2 AXIS CNC CONTROL WITH NEW 15" FLAT PANEL DISPLAY, SIMULTANEOUS CIRCULAR OR LINEAR INTERPOLATION, ABSOLUTE AND INCREMENTAL PROGRAMMING, AUTOMATIC CORNER ROUNDING, MATHEMATICAL HELP MODE, CANNED CYCLES FOR MACHINING ARCS, DIAGONALS, CIRCLES, BOLT HOLE PATTERNS, POCKET MILLING AND MORE, CUTTER DIAMETER COMPENSATION, AND ENGLISH /METRIC CONVERSION
3 AXIS DIGITAL READOUT DURING MANUAL OPERATIONS
X AND Y AXIS BALLSCREWS
DC SERVO MOTORS ON ALL AXES
DOVETAIL TYPE CHROME WAYS
BIJUR AUTOMATIC LUBRICATION SYSTEM
PERFECT FOR TOOLROOM OR PROTOTYPE WORK

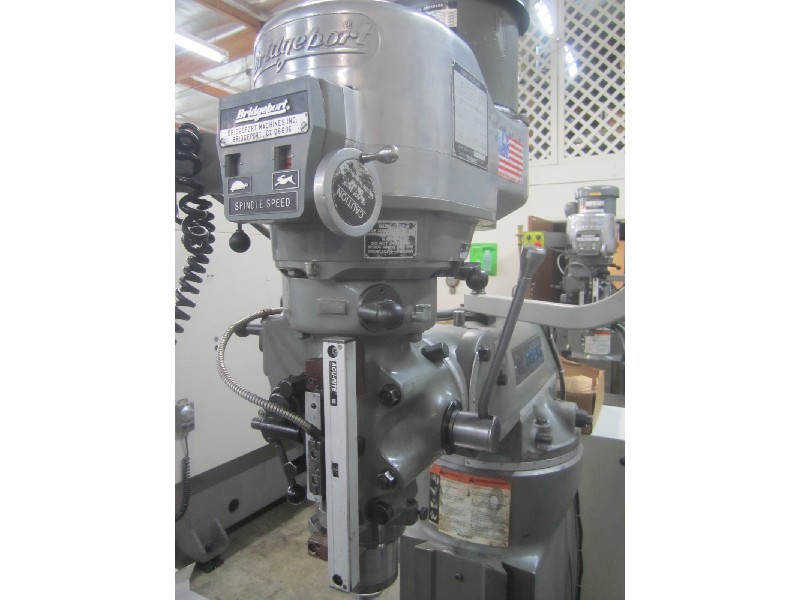

RE-CONDITIONED VARI SPEED HEAD

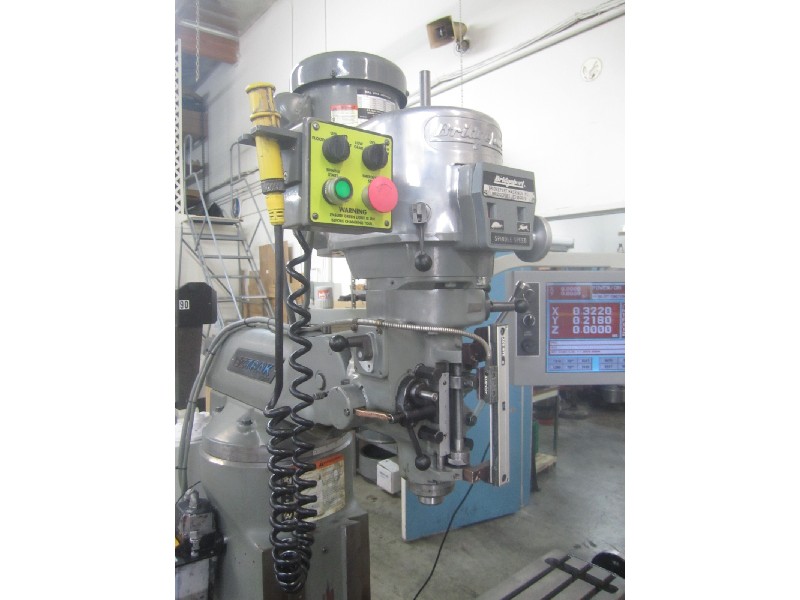

NEW 15" COLOR DISPLAY & KEYPAD CONSOLE
