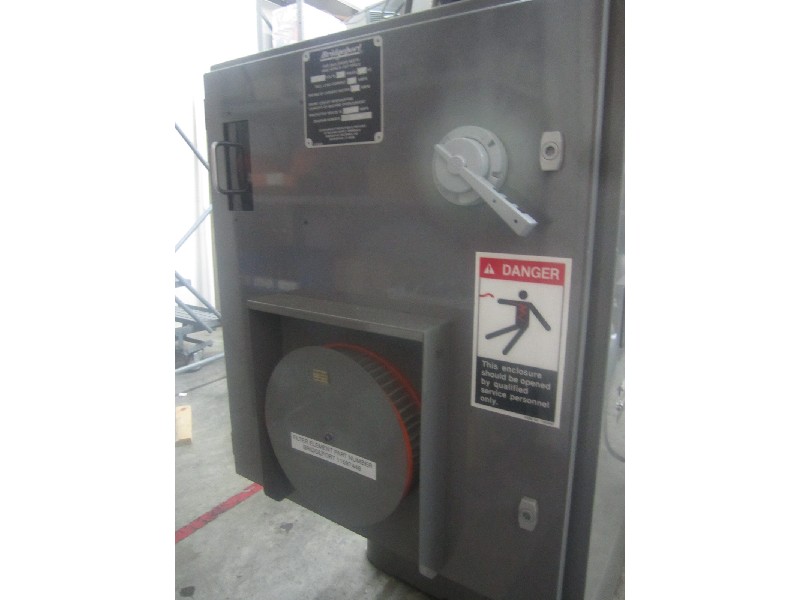

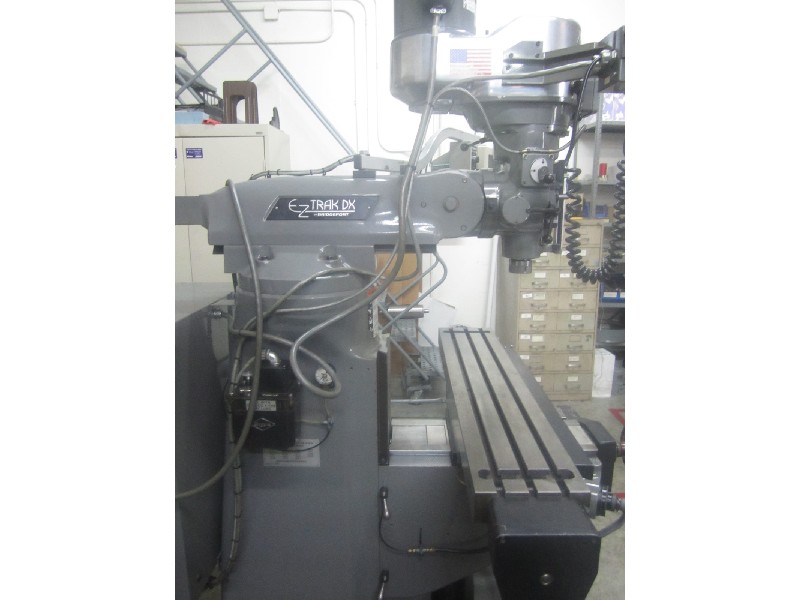

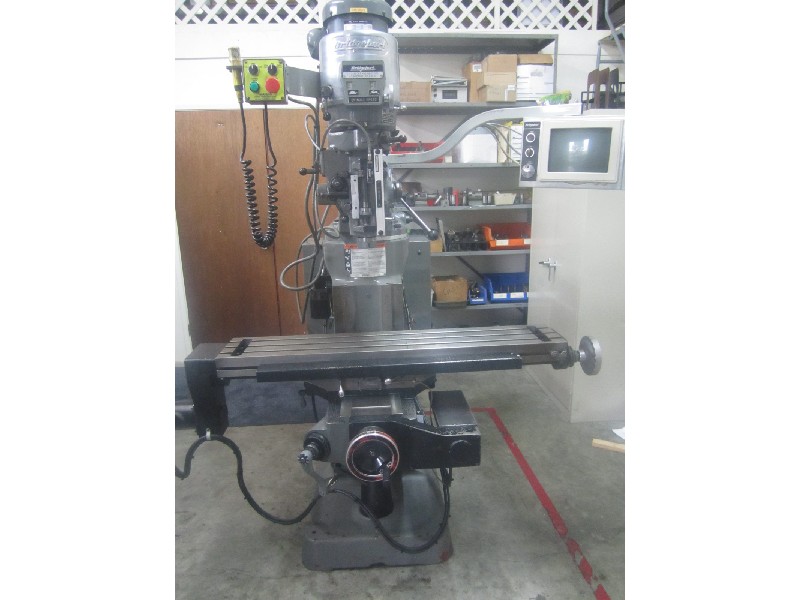

| Specification | Description |
|---|---|

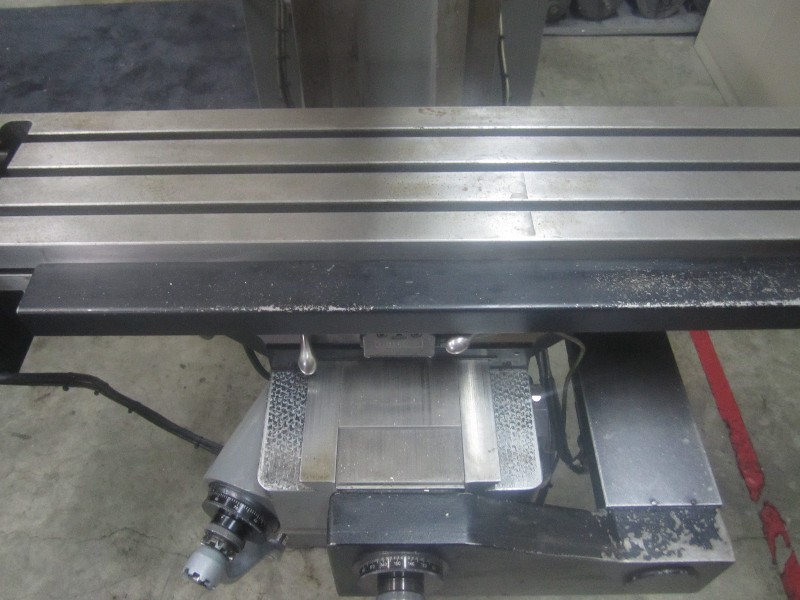

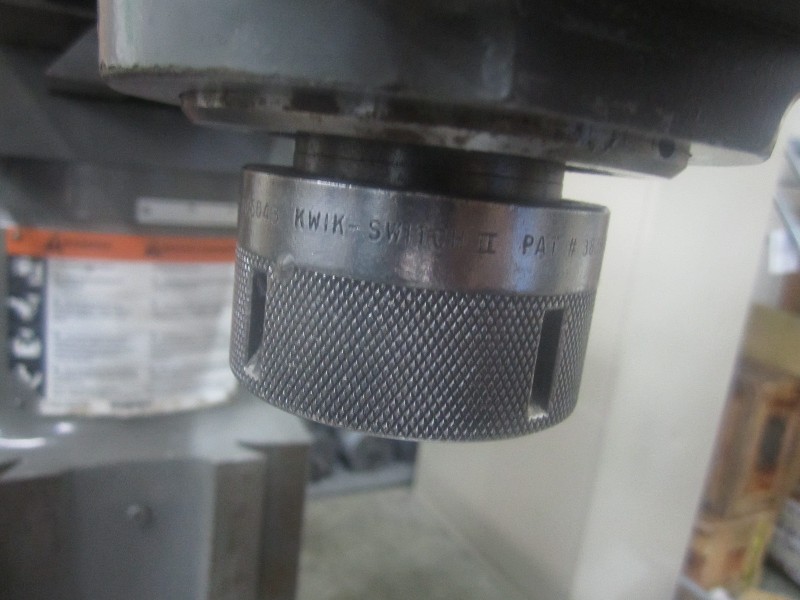

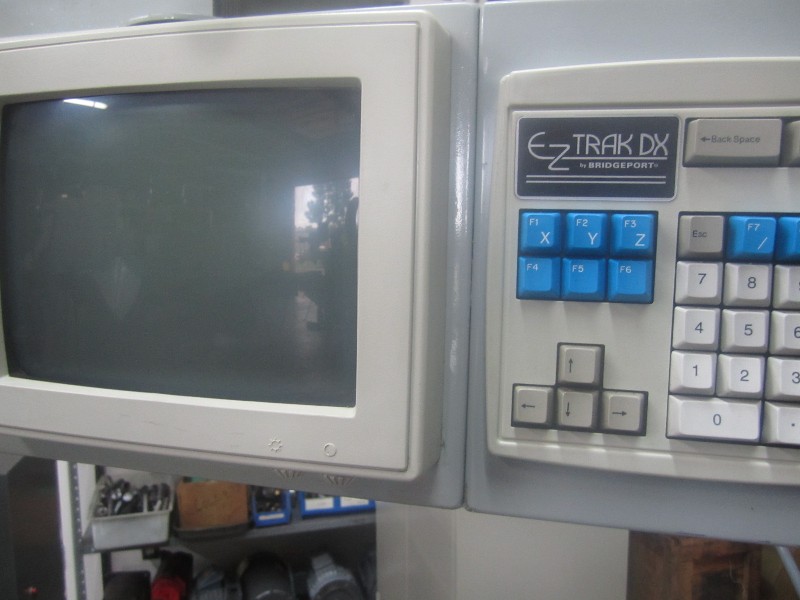

| TABLE WORKING SURFACE | 9" X 48" |
| NUMBER OF T SLOTS | 3 |
| LONGITUDINAL TABLE RANGE | 30" |
| CROSS SADDLE RANGE (Y) | 12" |
| VERTICAL, QUILL RANGE (Z) | 5" |
| KNEE | 15" |
| MAXIMUM DISTANCE SPINDLE NOSE TO TABLE | 18 1/4" / 2 1/2" |
| MAXIMUM DIST CENTERLINE SPINDLE TO FACE OF COLUMN | 18 3/4" / 6 3/4" |
| MAX UNIFORM TABLE LOAD | 300 LBS |
| RAM TRAVEL | 12" |
| HEAD TILT, LEFT AND RIGHT | 90 DEGREES |
| HEAD TILT, FRONT TO REAR, EACH WAY | 45 DEGREES |
| POWER QUILL FEEDS (3) | .0015, .003, .006 IPR |
| INF VARIABLE SPINDLE SPEED RANGE: LOW | 60-500 RPM |
| INF VARIABLE SPINDLE SPEED RANGE: HIGH | 500-4,200 RPM |
| SPINDLE TAPER | R-8 |
| X AND Y AXES MANUAL AND AUTOMATIC POSITIONING RANGE | 100 IPM |
| X AND Y AXES FEEDRATE RANGE INF VAR | 0.1-100 IPM |
| MINI FEEDRATE INCREMENT | 0.0001" |
| APPROXIMATE WEIGHT | 2,500 LBS. |
