BRIDGEPORT 2 AXIS EZ TRAK CNC MILL

Stock Number: 1018

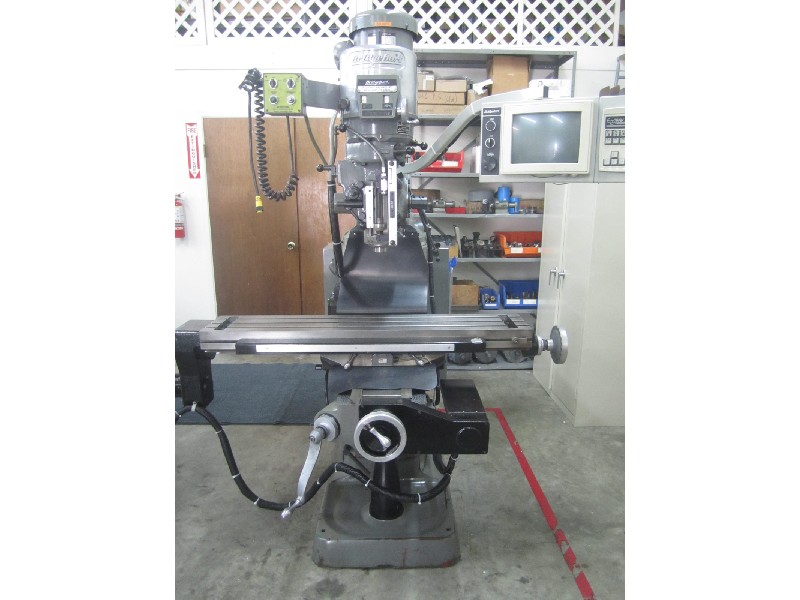

BRIDGEPORT EZ TRAK CNC MILL

Age: 1995

Condition: VERY GOOD

Click to view larger photo

Specification	Description
TABLE WORKING SURFACE	9 IN. X 48 IN.
# OF T-SLOTS	3
LONGITUDINAL TABLE RANGE (X)	30 IN.
CROSS SADDLE RANGE (Y)	12 IN.
VERTICAL QUILL RANGE (Z)	5 IN.
KNEE	15 IN.
MAXIMUM DISTANCE SPINDLE NOSE TO TABLE	18 1/4 IN. / 2 1/2 IN.
MAXIMUM DISTANCE CENTERLINE SPINDLE TO FACE OF COLUMN	18 3/4 IN. / 6 3/4 IN.
MAXIMUM UNIFORM TABLE LOAD	300 LBS.
RAM TRAVEL	12 IN.
HEAD TILT LEFT AND RIGHT	90 DEGREES
HEAD TILT FRONT TO REAR, EACH WAY	45 DEGREES
POWER QUILL FEEDS (3)	.0015, 003, .006 IPR
INF VARIABLE SPINDLE SPEED RANGE: LOW	60-500 RPM
INF VARIABLE SPINDLE SPEED RANGE: HIGH	500- 4,200 RPM
SPINDLE TAPER	R-8
X & Y AXIS MANUAL AND AUTOMATIC POSITIONING RATE	100 IPM
X & Y AXIS FEEDRATE RANGE, INF VAR	0.1- 100 IPM
MIN FEEDRATE INCREMENT	0.0001 IN.
APPROXIMATE WEIGHT	2,500 LBS.

Equipped With:
BRIDGEPORT EZTRAK 2- AXIS CNC CONTROL WITH 9 IN. MONOCHROME CONVERSATIONAL DISPLAY, SIMULTANEOUS CIRCULAR OR LINEAR INTERPOLATION, ABSOLUTE AND INCREMENTAL PROGRAMMING, AUTOMATIC CORNER ROUNDING, MATHEMATICAL HELP MODE, CANNED CYCLES FOR MACHINING ARCS, DIAGONALS, CIRCLES, BOLT HOLE PATTERNS, POCKET MILLING AND MORE, CUTTER DIAMETER COMPENSATION, AND ENGLISH/METRIC CONVERSION.
3 AXIS DIGITAL READOUT DURING MANUAL OPERATIONS
X AND Y AXIS BALLSCREWS
DC SERVO MOTORS ON ALL AXES
DOVETAIL-TYPE CHROME WAYS
BIJUR AUTOMATIC LUBRICATION SYSTEM
PERFECT FOR TOOLROOM OR PROTO-TYPE WORK
RE-CONDITIONED VARI SPEED HEAD
